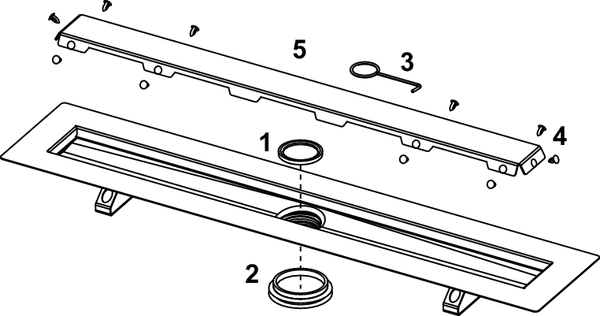

Straight channel body and support sheet for TECEdrainline shower channel, for installation in the screed and laying by the customer of large tiles/natural stone slabs, with flange and Seal System sealing tape, for creating an independently tested connection of the TECEdrainline shower channel to the composite seal. Consisting of: Channel body with flange made of polished stainless steel, material 1.4301 (304) Seal System sealing tape with matting for installation by the customer in the liquid or strip composite seal Connecting clips for anchoring in the screed and fitting of optional assembly feet Central connection piece for drain Internal incline for improved water drainage and self-cleaning effect Support sheet made of stainless steel – material 1.4301 (304) – for fitting in the channel body Seals Minimal installation height (without covering) to upper edge of channel: 52 mm "vertical" drain 61.5 mm "extra-flat" drain 87 mm "flat" drain" 112 mm "standard" drain 140 mm "max" drain Covering cut-out length x width: (L - 87 mm) x 68 mm Width of the continuous surrounding drain opening: 6-8 mm (see drawing on the right) Please order separately: Drain Assembly feet (optional) Drainbase sound insulation mat (optional), for adherence to installation noise level according to DIN 4109 and VDI 4100 sound protection levels (SSt) I to III Caution: Design grate "steel II" possible as custom-made grate; all other design covers (tileable channel, glass covers, design grates) are unsuitable!
